Product Description

SHUWEI Smart TRV Temperature Control Wifi Zigbee Heating Radiator Thermostat with Valve Compatibility with Goolg Home and Alexa

This product is an vital tool for your to achieve your intelligent life. With this product, you can control the temperature of the device, which can be achieved through your phone, it is easy to operate, come on and try it, it will not let you down.

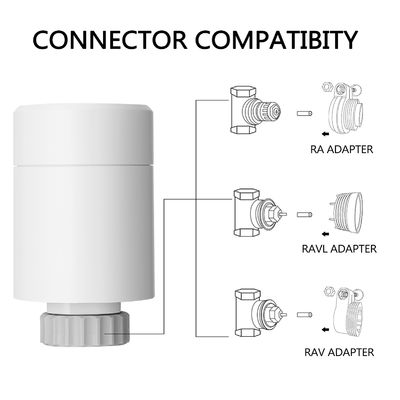

It is easy for you to install it, Unscrew the adapter and put in to the valve, then tighten the adapter, and rotate the temperature control body onto the adapter. Multiple modes available: boost mode, comfortable mode, vacation mode, automatic mode, manual mode, energy-saving mode for you to choose. With the low power alarm function, when electricity is running out, it will remind you, so you do not need to worry about sudden depletion of electricity interferes the using. Automatic mode, you can choose the working method from 5+2, 6+1, 7 days and 6 periods. After the selection, press the button to enter the time setting of the first period of the working day, then once again, press the button to set the temperature for the rest and finish setting. After connect with the APP by the ZigBee g-ateway, you can adjust the temperature through your phone, which is intelligent and convenient.

1. Parameter

2. Feature

♦ Room-by-room control with multiple Radiator Valves
Get the temperature just right in every room by putting SHUWEI Radiator Valves on all your main radiators. So you can warm up one room without overheating the rest of the house.


♦ Heat on Demand
SHUWEI Radiator Valves work best with Hive Active Heating. Your radiator valves can automatically turn the heating on when they need to in order to keep that special room warm, even when your thermostat is set low.
But if you don't have a SHUWEI thermostat, you can still use our radiator valves to keep rooms cool while you heat the rest of the house.


♦ Control Any Room At Any Time
If you realise you’ve left the heating on in a room you don't need, just turn the radiator off via your Tuya app.


♦ Schedules for Specific Rooms
Set specific temperatures or schedules in different rooms to keep everyone comfortable and to avoid heating rooms when you know they’ll be empty.


♦ No More Guesswork
Set the exact temperature you want in degrees, rather than just selecting a setting between 1-5.


♦ Open Window Detection
If a window’s been left open causing the temperature in the room to drop, your SHUWEI Radiator Valve adjusts automatically.

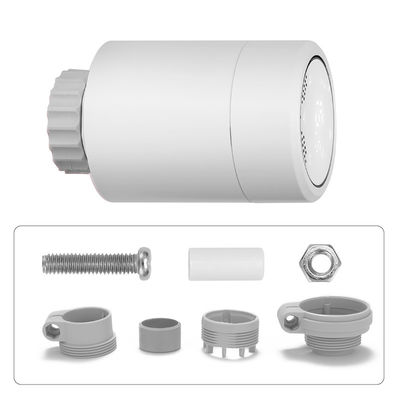

3.Packing

Packaging:
Color box

Package Listing:

1 * Radiator Thermostat

1 * RA Adapter

1 * RAV Adapter

1 * RAVL Adapter

1 * Instruction

Packing info.:
Single package size: 12x8.6x8.6cm
Gross weight/Unit: 280g
Quantity: 50pcs/CTN
Gross weight/CTN:15kg
Carton size: 45.5*45.2*27cm

Delivery time:

5-15 Work days

Cautions on Installation

1). To prevent the thermostat display from a high fluctuation, special treatment has been made to the program. Therefore, it is normal that the thermostat cannot immediately display the sudden change of temperature;


2). The thermostat installed on 1.5m above the ground;


3). For the thermostat installed,please take care not to install it to the wall corner, door / window side or behind the door or in such unheated area as exterior wall. Avoid hot / cold air duct, radiator, flue or thermal pipe;


4). When install the power supply, make sure that the power cable is well insulated;


5). Do not open the internal circuit board;


6). Before installing the thermostat, make sure that the system is disconnected. The maximum voltage of the system shall meet the requirements specified in the Instruction Manual .
