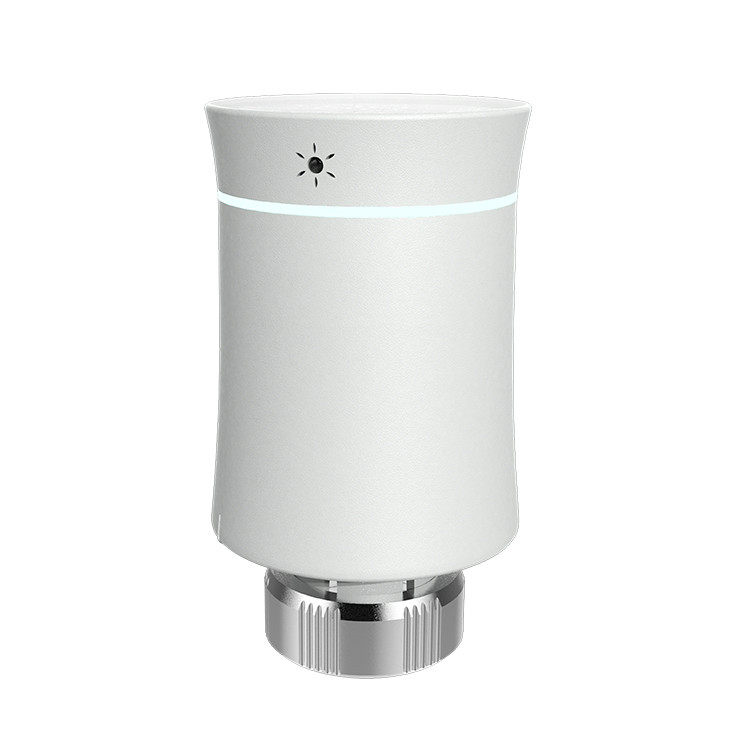

Wifi Thermostat Radiator Zigbee 3.0 Tuya Wifi TRV Radiator Valve Thermostat
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | SHUWEI |
| Certification: | CE ROHS FCC |
| Model Number: | BHT-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD28-35Pieces |
| Packaging Details: | Single size 12x8.6x8.6cm，FCL size 45.5*45.2*27cm（50pieces) |
| Delivery Time: | 5-15 Work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | 100000+Pieces+year |
|
Detail Information |
|||
| Warranty: | 2 Years | Floor Heating Valve: | Anti-condensation Balance Valve |
|---|---|---|---|
| After-sale Service: | Online Technical Support, Free Spare Parts, Return And Replacement | Material: | Anti-flammable PC +ABS, ABS + PC |
| Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation | Application: | Living Room, Water Heating System |
| Design Style: | Modern | Place Of Origin: | Shenzhen, China |
| Brand Name: | SHUWEI | Model Number: | BRT-100 |
| Type: | Floor Heating Parts | Floor Heating Part Type: | Floor Heating Thermostats |
| Product Name: | Radiant Heating | Certifications: | ISO CE LVD EMC |
| Function: | 7 Day Programmable | MOQ: | 50PCS |
| Power Supply: | 2*AA Batteries | Protection Class: | IP 20 |
| Timing Error: | < 1% | Storage Temp: | -5~ 45℃ |
| High Light: | radiator valve thermostat Zigbee 3.0,Tuya wifi thermostat radiator,Tuya wifi trv |
||
Product Description
SHUWEI Thermostat Radiator WIFI Zigbee 3.0 Tuya wifi TRV radiator valve thermostat digital programmable thermostat google home
This new actuator is designed with mini body and simple clear LCD display than before, will fine turning for valve status of opened, according to room temperature and setting temperature to meet better status of power saving for put off the working life of battery. Radiator actuator valve also known as electric valve, is a new concept for water valve device, suitable for housing, shopping mall, hotel heating and central air conditioning temperature control, room temperature control.A Tuya ZigBee wireless gateway hub is a must and key device in ZigBee network. The Zigbee radiator thermostat joins the network by using a ZigBee wireless gateway, is able to build the communication to the other ZigBee devices,including ZigBee3.0 devices.After successfully connecting to a hub,auto and manual mode,holiday mode optional for you to make settings to your own need,as well as 5+2,6+1 and 7 days weekly programmable schedule with 6 periods for your valve.Enjoy your smart life with SHUWEI Smart Products.
1. Parameter
| Maximum stroke | 4.5mm |
| Power Supply | 3 V,2x AA |
| Accuracy | +0.5 C |
| Set Temp. Range | 5-35℃ |
| Display temp. Range | 0-70℃ |
| Ambient Temp | 0-45℃ |
| Ambient Humidity | 5 ~ 95 % RH |
| Storage Temp | -5~ 45 °C |
| Timing Error | < 1% |
| Protection Class | IP 20 |
2. Feature
♦ Tuya ZigBee intelligent radiator actuator thermostat: New mini design with simple and clear LCD display on the body, radiator, thermostat is with digital LCD display, and TWO, AAA battery sections, which is a special valve that you use in collaboration with heating radiator. Artificially adjusts the indoor temperature, mainly used in the floor heating system to control the closing and opening of the pipe 2MQTT available configuration.
♦ A Tuya ZigBee Wireless Link Hub is a must: A ZigBee wireless hub is a must-have that connects to the valve with many other ZigBee smart products and realizes the complete connection of your smart devices. Just add the front door to the app, and then add the radiator actuator to the front door of the app.
♦ Programmable schedule with weekly schedule selection: Supports manual setting 5 +2,6 + 1 and 7Days weekly schedule with 6 periods for option, which provides you maximum comfort for different situations AND custom SCHEDULE ADJUSTMENT for the temperature of your house. Vacation mode, auto mode, boost mode available. Choose working day and service mode to suit your own mind.
♦ Voice and Remote Control for Tuya ZigBee Wireless Gateway: Supports remote APP control via your smartphone, along with hands-free voice control via Alexa and Google Assistant after successfully connecting your valve to the Tuya / Smart Life application based on a Tuya ZigBee wireless gateway.
♦ Open window detection: When the room temperature suddenly drops in temperature. Threshold, the valve will close for 15 minutes. After, if the room temperature. It is still lower than temperature. Threshold, it will keep this mode. In addition, it's easy to read the digital display with centigrade temperature. The 2-year warranty, for all SHUWEI Smart Thermostat, 60 to 90 days, without hindering daily operation.
3.Packing
Packaging:
Color box
Package Listing:
Radiator thermostat 1pc
User Guide 1pc
RA adapter 1
RAV adapter 1
RAVL adapter 1
Comap adapter 1
T+A Herz adapter 1 set
Herz adapter 1
Packing info.:
Single package size: 12x8.6x8.6cm
Gross weight/Unit: 280g
Quantity: 50pcs/CTN
Gross weight/CTN:15kg
Carton size: 45.5*45.2*27cm
Delivery time:
5-15 Work days
FAQ
Q1: Do you supply OEM or ODM?
A: Yes, we heve strong R&D sources and production ability, and already helping many interational companies OEM/ODM cases with highly positive feedback.
Q2: Which payments are acceptable?
A: We accept T/T, Paypal, western Union.
Q3: How fast can l get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very ungent to get the price, please call us +0086 13693666301 or tell in your email so that we will regard your inquiry prionrity.
Q4: Can i visit your factory?
A: Yes, of course you are warmly welcomed to visit our factory. Please kindly contact us in adcance.
Q5: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
