Hard Wired 12V DC 2 Wire Smart Curtain Motor Electric Roller Blind/Shade Tubular Motor Kit
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | SHUWEI |
| Certification: | CE ROHS FCC |
| Model Number: | FT-011 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | USD23-103Pieces |
| Packaging Details: | Single size：23cm*10cm8cm, FCL size: 50cm*48cm*18cm（20pieces） |
| Delivery Time: | 5-15 Work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | 100000+Pieces+year |
|
Detail Information |
|||
| Place Of Origin: | Shenzhen, China | Brand Name: | SHUWEI |
|---|---|---|---|
| Model Number: | FT-011 | Warranty: | 1 Years |
| Type: | Tubular Motor | Frequency: | 433.92 MHz |
| Phase: | Single-phase | Protect Feature: | Waterproof |
| AC Voltage: | 110-240 V | Efficiency: | IE 4 |
| Product Name: | Smart Blinds Motor | Battery Capacity: | 2200mAh Or OEM |
| Rated Voltage: | 8V DC | Power: | 45W |
| Diameter: | 25MM | Color: | Grey White Or OEM |
| Application: | Window Blinds | Noise: | <33dB ( 1 Meter ) |
| Shaft Type: | Single Shaft | Weight: | 0.92LBS |
| High Light: | 12V Smart Curtain Motor,2 Wire Smart Curtain Motor,IE4 tubular motor kit |
||
Product Description

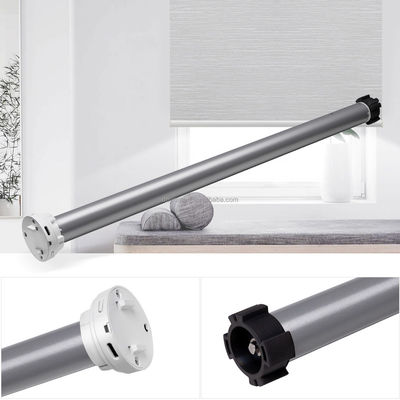

SHUWEI Smart curtain motor Electric Roller Blind/Shade Tubular Motor Kit, Hard Wired 12V DC Motors 2 Wire Motor
SHUWEI motorized roller blinds system with Tubular motor, with built-in RF Receiver and electronic limit, is widely accepted and popular in home automation installing and office furnishing.
Besides, its electronic limit would bring you more conveneinces to set and change the limit. it is widely applicable to electric roller shades, motorised roller blinds, roman blinds, zebra blinds, shangri blinds and venetian blinds.
1. Parameter
| Rated Current | 0.14A |
| Rated Power | 45W |
|
Torque |
10Nm |
|
Running Speed |
14cm/s |
| Power Cord Type | 2 Core- 4 Core |
| Protection Degree | IP20 |
| Operation Noise | 33dB |
| Radio Frequency | 2.4G/433MHZ |
| Minimum Width | 0.9m |
| Maximum Width | 12m |
| Function | Mechanic Limit,Switching Direction,Built-in Receiver,Tile&Lift Mode,Low-noise |
2.Feature
• Built-in WiFi module, direct connection to smartphone, Alexa, Google Home, etc. No need of extra hubs
• Multiple control via: hand-held remote, smart curtain switch, smartphone app (TuyaSmart, Smart Life) and so on.
• Voice control via: Amazon Alexa, Google Home, and Apple Siri
• Timer scheduling for automated opening and closing via remote or smartphone
• Three setting positions: top, middle, bottom
• The limit is applied with maintenance-free pure copper rod and nut, and the stroke and angle can be adjusted flexibly. It is easy to take off, land and precisely locate.
• The tube is applied with a mute system that effectively reduces vibration and noise.
• It is easy to adjust and install.
• The motor is equipped with a built-in protection device to automatically prevent overload damage.
3.Packing
Packaging:
Color box
Package Listing:
Tubular motor*1
Remote control*1
Power cord*1
User Manual*1
Screw*1
Packing info.:
Single package size: 23*10*8cm
Gross weight/Unit: 575g
Quantity: 20pcs/CTN
Gross weight/CTN: 12kg
Carton size: 50*48*18cm
Delivery time:
5-15 Work days
FAQ
Q1. How to choose a suitable motor?
The formula is :N.m=Reel pipe Radius(mm)*loading weight(kg)/100.
For example, if the loading weight is 50kg ,and the reel pipe radius is 30mm,please figure out the torque of the motor.
N.m=30*50kg/100=15N.m.
Q2. How about the weight can the motor load?
The formula is :Loading weight(kg)=N.m*100/ Reel pipe Radius(mm).
For example: the torque of the motor is 15N.m,the Reel pipe Radius is 30mm
please figure out the the loading weight.Loading weight(kg)=15N.m*100/ 30 Reel pipe Radius(mm)=50kg.
Q3. What's your MOQ?
1 pieces.If you order more,there will be a discount.
Q4. Can I customize the packing and motor's color?
Yes,we can produce the packing according to your design.
Q5. My order quantity is small, can you provide?
We support sample/small/big/full order, and no matter how many quantity you want, we will always provide you the fastest and professional service right away.
Q6. Can you accept OEM service?
Yes, sure and welcome
Q7. What is the lead time?
Sample is 7days, small trial or full order is usually 7-15days.
Q8. What kind of payment do you accept?
Payment welcome T/T, L/C,Alibaba Trade Assurance (more welcomed)
Q9. Can you provide free sample?
Can be negotiation,According to the true order.
