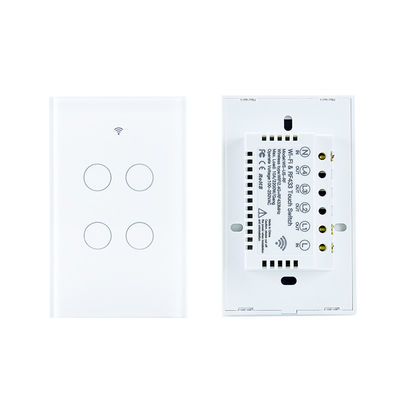

1/2/3/4/6/8 Gang Light Smart Wifi Wall Switch RF433 need Neutral Wire Tuya App Control Works with Alexa
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | SHUWEI |
| Certification: | FCC ROHS CE |
| Model Number: | US4-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD5-15/Pcs |
| Packaging Details: | Single size13.5*8.1*5.3,FCL size43*28.5*28.5（50pieces） |
| Delivery Time: | 5-15 Work days |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 2000pcs/week |
|
Detail Information |
|||
| Mechanical Life: | 100000Times | Size: | 120*73*35mm |
|---|---|---|---|
| Input Voltage: | AC 100-240V 50/60HZ | Color: | White / Black / Gold |
| Function: | WiFi Smart Control | Type: | Smart Touch Light Wall Switch,UK / EU / US / Universal |
| Feature: | Google Home Alexa IFTTT,Waterproof Fireproof Scratch | Application: | Office/Home,House+Hotel |
| High Light: | 8Gang Smart Wifi Wall Switch,Smart Wifi Wall Switch RF433,Tuya 8 gang smart switch |
||
Product Description
SHUWEI 1/2/3/4/6/8 Gang WiFi Smart Light switch RF433 need Neutral Wire Smart Life Tuya App Control Works with Alexa
1.Product Description
- Phone App Control: Control from anywhere in the world; Support for both Android and IOS .
- Voice Control: Can work with Alexa, Amazon and Google Home.
-Timer / Scene Control : You can add and set the time to turn ON/OFF the light automatically .
- Real-time Feedback ON/OFF State.
- Crystal Glass Panel : Never fade and always look like a brand-new switch.
- Soft LED Backlight: Indicate the position in darkness and easy to find.
- Capacitive Touch Sense : Very sensitive touch control feeling like Iphone touch.
- Intelligent Chips: Smart, high-quality and more superior performance.
- Safe : E-start, no sparking contacts.
- Applicable to all the common lamps.
2.Product Parameter
| Parameter |
Specifications |
| Items | Touch light switch |
| Brand | SHUWEI |
| Model No. | US3-B |
| Max. voltage | 110V~250V |
| Max. current | 10A |
| Panel material | PC Flame Resistant Material,Tempered Crystal Glass |
| Connection mode | No neutral line, With neutral line |
| App Name | Smart Life /Tuya APP |
| working temperature | -20° C ~ +70°C |
| HS Code | 8536500090 |
| Service model | OEM, ODM |
| Maximum Power Load | 300W(Max) LED or incandescent / Gang |
| Standby Power | ≤0.5W |
| Wi-Fi Protocol | IEEE 802.11 b/g/n |
| Connection mode | WiFi 2.4G app connection (PS: Doesn't support 5G) |
| Number of gangs | 3 |
| APP language categories | Chinese, Traditional Chinese, English, Arabic, Spanish, French, Russian, German, Italian, Japanese, and Holland |
| General functions | Remote Access,Time Schedule,Voice controlled,Overload protection,Last-setting memory |
| Packaging | Color box |
| Dimensions/Unit | 120*73*35mm |
| Single package size | 135*81*53mm |
| Gross weight/Unit | 250g |
| Quantity | 50pcs/CTN |
| Gross weight/CTN | 13.5kg |
| Carton size | 43*28.5*28.5cm |
3.Remote Control Learing Method
1. One button ON and OFF learning method
Press the receiver switch touch button, the switch will sound "Di" one time then release the button, press remote control button can reach to control light ON and OFF.
2. One button ON learning method
Press the receiver switch touch button, the switch will sound " Di Di" two times then release the button, press remote control button can reach to control light ON. (First time learning with two-way feedback Switch "on" feedback code).
3. One button OFF learning method
Press the receiver switch touch button, the switch will sound "Di Di Di" three times then release the button, press remote control button can reach to contorl light OFF. (First time learning with two-way feedback Switch "OFF" feedback code).
4. Clear the remote control code method
Press the receiver switch touch button, the switch will sound "Di Di Di Di" four times then release the button, clear the remote control completed.
